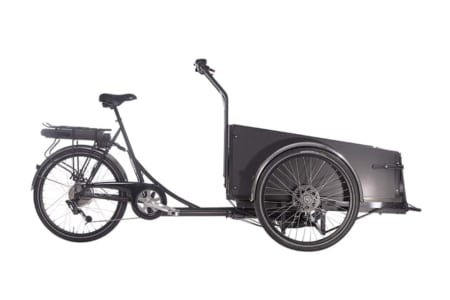

Model S

Du måste vara inloggad för att bygga din cykel

Bygg din cykel här

*Vi förbehåller oss rätten att justera priset och reserverar oss för prisändringar orsakat av prisändring från leverantör, feltryck i prislista samt felaktigheter i priser beroende på felaktig information.

Beskrivning

Model S was developed in 1994 and has been designed for the transport of wheelchair users, specifically children with special needs. By using the special hook mounted on the left side of the box, the platform can easily be converted into a ramp, where the wheelchair can be pushed up/down. The wheelchair can be secured with a strong safety belt. It is also possible to add bespoke Bugatti hood and bench.

Ytterligare information

Vikt 60 kg
Dimensioner 233 × 99 × 115 cm
Box

Internal dimensions 99 x 73 cm +/- 0.5 cm, hand built in Denmark

Ramp width

67.5 cm

Payload

100 kg

Permissible max weight

260 kg

Turning radius

492 cm

Wheels

Made in Denmark, wheel size: 24"

Hub

Own designed front hubs; made for heavy loads; made of aluminum alloy; with deep groove ball-bearings.

Rim

Made in the EU; aluminum alloy; single-bounded

Spokes

Made in the EU; 2.33 mm stainless steel

Wood

9 mm birch of highest quality, from the EU, FSC certified, water-proof

Handlebar

Own design, made in Denmark, galvanized steel

Chain

High-end chain made of galvanized or stainless steel

Mudguards

24" stainless steel

Front frame

Aluminium alloy in mat black finish; assembled in Denmark

Rear frame

Aluminium alloy in mat black finish or steel frame in black finish, assembled in Denmark

Steering

Danish made steering system with high-end German made steering damper

Wheel brackets

Galvanized steel, made in Denmark

Comply with

Directive 2014/30/EU, Machine Directive 2006/42/EC, Standard EN 15914
