Beskrivning

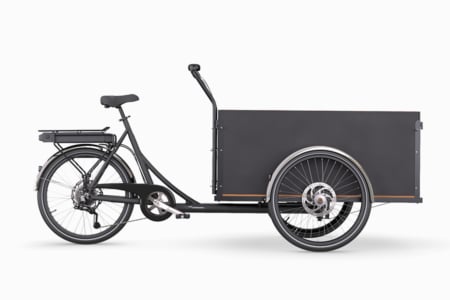

Model +30 was originally developed for the Swedish market only in 1995, but today it is exported throughout the world. It is based on the same construction as Model Light, but it has a 30 cm longer box. This model is particularly suitable for transporting up to six children by fitting six tip-up seats in the box. It is possible to mount three tip-up seats on each side of the box and still have plenty of room. Model +30 can also be mounted with either one or two benches or seats – one bench or seat in each end of the box. The box is a straight box – meaning it has a 50-cm box height all around. The size of the box has a volume of 366 liters and a max payload of 100 kg making it also a useful cargo bike for carrying bulky sizes of material and/or a lot of goods.

Ytterligare information

Vikt 39 kg
Dimensioner 238 × 87 × 117 cm
Box

Internal dimensions 118 x 62 x 50 cm +/- 0.5 cm, hand built in Denmark

Box size

366 L

Payload

100 kg

Permissible max weight

245 kg

Turning radius

534 cm

Wheels

Made in Denmark, wheel size: 24"

Hub

Own designed front hubs; made for heavy loads; made of aluminum alloy; with deep groove ball-bearings.

Rim

Made in the EU; aluminum alloy; single-bounded

Spokes

Made in the EU; 2.33 mm stainless steel

Wood

9 mm birch of highest quality, from the EU, FSC certified, water-proof

Handlebar

Own design, made in Denmark, galvanized steel

Chain

High-end chain made of galvanized or stainless steel

Mudguards

24" stainless steel

Front frame

Aluminium alloy in mat black finish; assembled in Denmark

Rear frame

Aluminium alloy in mat black finish or steel frame in black finish, assembled in Denmark

Steering

Danish made steering system with high-end German made steering damper

Wheel brackets

Galvanized steel, made in Denmark

Comply with

Directive 2014/30/EU, Machine Directive 2006/42/EC, Standard EN 15914
